HEATERS
Daystar
GP5
HOTGUN 125NA
KBE5L (2-STEP)
KBE5S

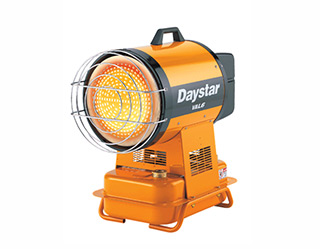

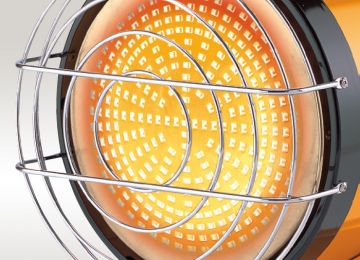

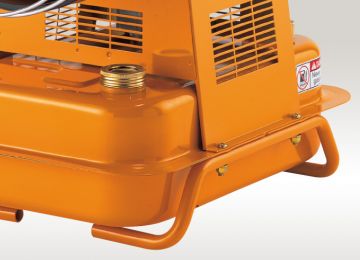

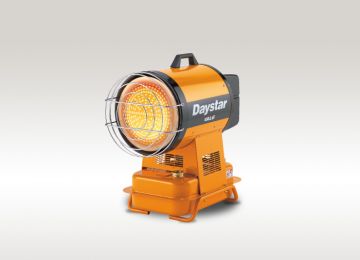

DAYSTAR
ADVANTAGES
ADVANCED TECHNOLOGY
“Daystar” provides perfect heating with its well-honed technology for spot space heating in a large open area.
HIGH EFFICIENCY
The “Daystar” will usher in a new era of high efficiency ‘oil fired’ space heating with 100% heat recovery from the oil burnt.
DUAL HEATING SYSTEM
The “Daystar” expands the “VAL6” world by adopting the dual heating system of radiant heat and forced air heat.
VERSATILE
Every “VAL6 series” oil heater can be operated by diesel (#1) or kerosene.
ULTRA PORTABLE
Weighing only 40 pounds, the Daystar is ultra portable and can be used virtually anywhere you need to stay warm, indoors and out.
Specifications
| Item/Model | DAYSTAR |
|---|---|
| Heat Output | 51,200 BTU/hr |
| Fuel | Kerosene, Diesel |
| Tank Capacity | 2,6 gallons |
| Power Source | 120 V, 60Hz single phase |
| Power Consumption | 120W |
| Control System | 5sec.Prepurge 330sec.Postpurge |
| Safety Device | Photocell flame monitor 3A Fuse Overheat prevention system Tip-over switch |
| Burner type | High pressure spray gun type |
| External Dimensions (HxWxD) | 23.4x12.2x22.8 in |
| Dry Weight | 40lbs |

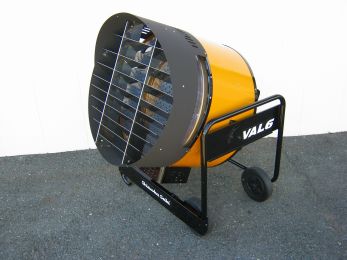

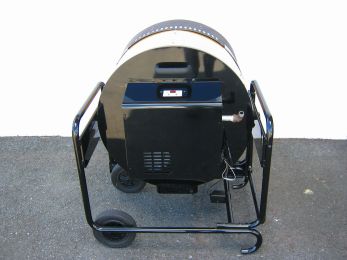

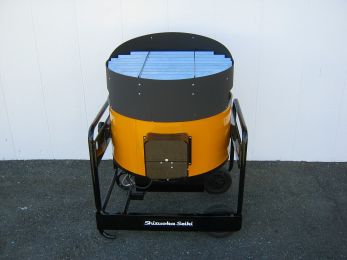

GN5/GP5
The GN5/GP5 (natural gas/propane) is the newest model produced for the Val6 series. It incorporates a gas burner into our infrared heater technology as it utilizes a premixed combustion burner that creates a blue flame due to premixing the fuel gas and air in advance. This means virtually silent operation and clean combustion.
ADVANTAGES
CLEAN COMBUSTION
The efficiency of our premixed gas combustion system means the GAS VAL6 produces less than 1 ppm of carbon monoxide – 10-20 times less than typical torpedo-style heaters.
QUIET OPERATION
The efficiency of our premixed gas combustion system means the GAS VAL6 produces less than 1 ppm of carbon monoxide – 10-20 times less than typical torpedo-style heaters.
ADJUSTABLE ANGLE
Ther vertical angle of the radiation disk is adjustable up to 90 degrees.
Specifications
| Item/Model | GN5/GP5 |
|---|---|
| Heat Output | 144,000 BTU/hr 42.2kW |
| Fuel | GN5 = Natural Gas, GP5 = Propane Gas |
| Fuel Consumption | GN5 = 137 CFH, 6.1 lbs/hr GP5 = 55.8 CFH, 6.6 lbs/hr |
| Power Source | 120 V, 60Hz |
| Power Consumption | When igniting: 107W When burning: 93W |
| Noise level | 60 dB (A) |
| Dimension (H x W x D) | 35.3 x 31.7 x 30.3 (inch) |
| Weight | 108.1 lbs |
| Safety Devices | Tip over detection, Overheat protection, Auto-restart prevention Fuse |
| Accessory | - |

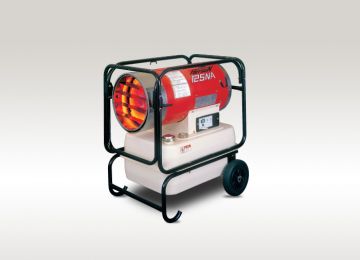

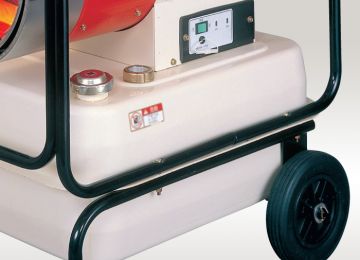

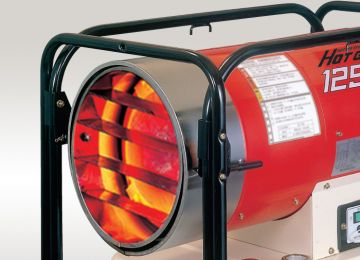

HOTGUN 125NA
ADVANTAGES
HIGH EFFICIENCY
“Hotgun” spot space heater heats the air with its high efficiency combustion system, and a conversion rate from fuel to energy of nearly 100%.
15 HOUR RUN TIME
“Hotgun” can run over 15 hours with its 14.3 gallon tank..
ADVANCED TECHNOLOGY
Unlike other space heaters, the Hotgun’s remarkable technology achieves quiet combustion of 69dB, high efficiency and a long running-time of over 15 hours.
VERSATILE
Operating on either diesel or kerosene, the Hotgun is extremely versatile and easy to use almost anywhere you desire.
Specifications
| Item/Model | HOTGUN 125NA |
|---|---|
| Heat Output | 116,000 BTU/hr (34 kW) |
| Fuel | Diesel, Kerosene |
| Tank Capacity | 14.3 gallons (54 liter) |
| Hot Air Flow | 636 CFM (1,080 m3/h) |
| Power Source | 110-120 V, 50/60 Hz Single phase |
| Fuel Consumption | 0.9 gal/hr (2.9 kg) |
| Power Consumption | 176 W |
| Control System | 5 sec.Prepurge 180 sec.Postpurge |
| Safety Devices | Photocell flame monitor Fuse, Overheat prevention |
| Burner Type | High Pressure spray gun type |
| Dry Weight | 82 lbs (37 kg) |

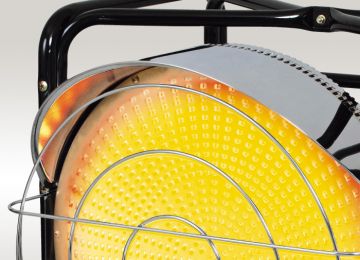

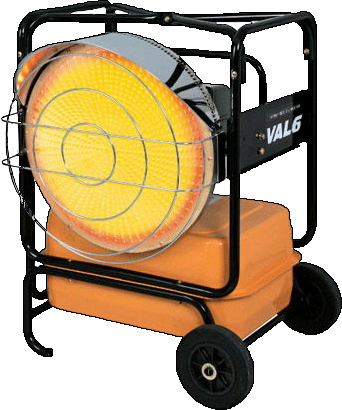

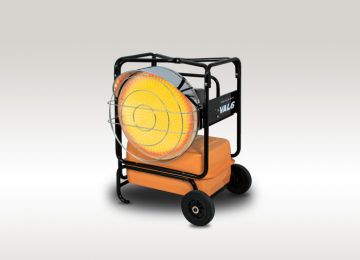

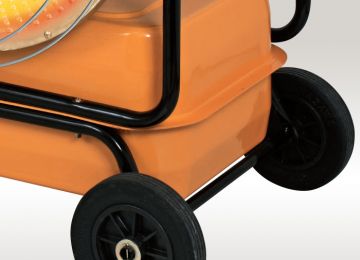

KBE5L (2-STEP)
ADVANTAGES
SUNLIGHT WARMTH
VAL6’s radiant heat penetrates evenly and directly into surfaces just like sunlight.
BEST CHOICE FOR OUTDOORS
VAL6 is not affected by wind, unlike forced air heaters that suffer from heat loss in the ambient air.
HEAT TRANSFER
VAL6 generates infrared heat directly to the object without any air movement creating a dust-free comfortable environment.
ODORLESS
VAL6’s perfect combustion system produces no odor and no smoke while running.
ENERGY SAVINGS
VAL6’s state of the art combustion chamber enables virtually 100% fuel to energy conversion.
PORTABLE
This heater can be taken virtually anywhere that you need heat.
Specifications
| Item/Model | KBE5L 2-STEP |
|---|---|
| Heat Output | High : 118,000 BTU/hr Low : 100,000 BTU/hr |
| Nozzle | High: 0.90 gallons/hr Low: 0.75 gallons/hr |
| Fuel | Diesel, kerosene |
| Tank Capacity | 15 gallons |
| Power Source | 120V 60Hz |
| Power Consumption (in ignition) | 150W |
| Power Consumption (in operation) | High: 97W Low: 96W |
| Safety Device | Photocell flame monitor, 3A Fuse Tip-over switch |
| Ajustable Disk Angle | Tilts upward 20 degrees |
| External Dimension | 36.3 x 28.0 x 29.2 in |
| Dry Weight | 92.6 lbs |

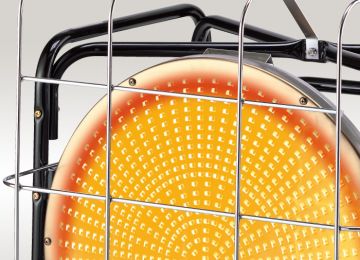

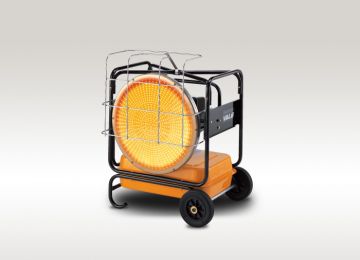

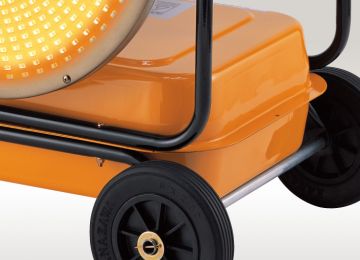

KBE5S
KBE5L’s state of the art combustion chamber enables virtually 100% fuel to energy conversion. This translates to clean, odorless, smokeless operation and, more importantly, fuel savings.
Impervious to nature’s elements (wind, rain, and snow), the KBE5S is able to transfer infrared heat directly to the object without any loss of heat or air movement.
ADVANTAGES
RADIANT HEAT
Heat penetrates evenly like heat from sunlight.
OUTDOOR USE
VAL6 is not affected by wind, unlike forced air heaters that suffer from heat loss in the ambient air.
HEAT TRANSFER
VAL6 generates infrared heat directly to the object without any air movement creating a dust-free comfortable environment.
ODORLESS
VAL6’s perfect combustion system produces no odor and no smoke while running.
ENERGY SAVINGS
VAL6’s state of the art combustion chamber enables virtually 100% fuel to energy conversion.
PORTABLE
This heater can be taken virtually anywhere that you need heat.
Specifications
| Item/Model | KBE5S |
|---|---|
| Heat Output | 111,000 BTU/hr |
| Nozzle | 0.85 gal/hr |
| Fuel | Diesel, kerosene |
| Tank Capacity | 9 gallons |
| Power Source | 120V 60Hz |
| Power Consumption | 100W |
| Safety Device | Photocell flame monitor, 3A fuse Tip-Over Sensor |
| Ajustable Disk Angle | Tilts upward 20 degrees |
| Dimensions | 36.1x25.8x27.7 in |
| Dry Weight | 83.8 lbs |
