RANCH PRO™
GAS POWERED DRIVER


Model: Ranch-Pro™ Gas Powered Driver
Model Number: 300001

Downloads
RHINO_RANCH_PRO_OWNERS_MANUAL
SPEC RANCH PRO

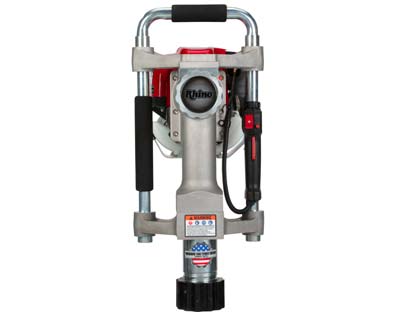

FENCE PRO™
GAS POWERED DRIVER
The RHINO® Fence-Pro™ is engineered to deliver more power to drive larger posts, The design includes a 2-1/2″ chuck equipped with RHINO® Chuck-Lok™ Adapter Technology. This innovative post adapter system increases driving efficiency by aligning post to optimum striking position, prolongs tool life, and provides flexibility to quickly adapt to different post sizes in the field. The Fence-Pro™ comes with 2″ adapter. Optional 1-3/4″ and 1″ adapters are available. The Fence-Pro™ is the perfect tool for post driving tasks across several industries such as erosion control, agricultural, livestock, professional fence contractors, sign installation, rental tent installation and many more.


Model: Fence-Pro™ Gas Powered Driver
Model Number: 301001
Equipped With: 2-1/2″ (63.5mm) I.D. Master Chuck
Weight: Approx. 38 lbs. (17.24kg)

Downloads
SPEC FENCE PRO

MULTI PRO™
GAS POWERED DRIVER


Model: Multi-Pro™ Gas Powered Driver
Model Number: 301002
Equipped With: 2-1/2″ (44.45mm) I.D. Master Chuck
Weight: Approx. 44 lbs. (19.96kg)

Downloads
SPEC MULTI PRO

MULTI PRO XA™
GAS POWERED DRIVER


Model: Multi-Pro™ Gas Powered Driver
Model Number: 301002
Equipped With: 2-1/2″ (44.45mm) I.D. Master Chuck
Weight: Approx. 44 lbs. (19.96kg)

Downloads

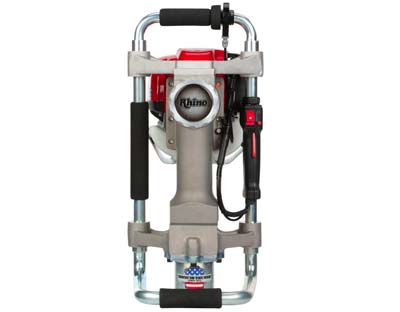

GPD TENT STAKE DRIVER™
GAS POWERED DRIVER
The design includes both top throttle and side throttle start triggers, factory installed tent stake chuck for driving large head tent stakes, ergonomically balanced cushioned grip handles, Rhino® CIS™ anti-vibration dampening and Rhino Tension Grip™ crankcase cover for fast inspection and maintenance.
This unit is designed as an off-the-shelf solution for professional tent installation.


Model: GPD™ Tent Stake Driver
Model Number: 301012
Equipped With: Tent Stake Chuck
Weight: Approx. 44 lbs. (19.96kg)

Downloads

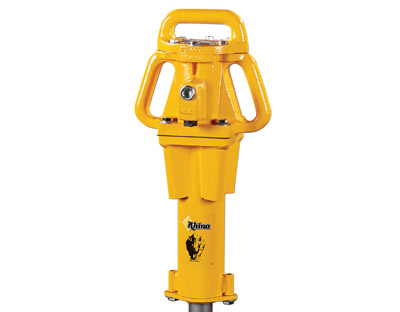

PD-45™
PNEUMATIC DRIVER


Downloads

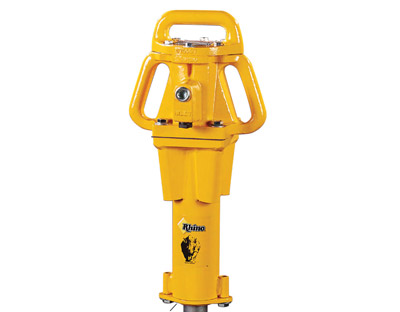

PD-55™
PNEUMATIC DRIVER





Downloads

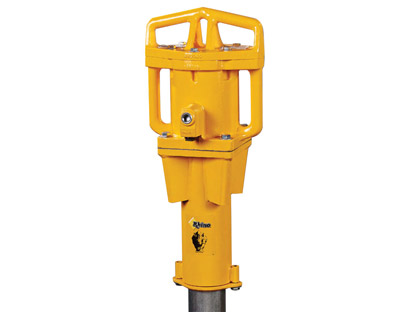

PD-110™
PNEUMATIC DRIVER




Downloads

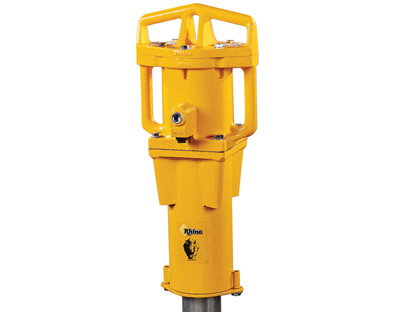

PD-140™
PNEUMATIC DRIVER


Downloads

PD-200™
PNEUMATIC DRIVER


Downloads

HPP 13 FLEX™
HYDRAULIC POWER PACK

- Breakers
- Cut-off Saws
- Diamond Chainsaws
- Core Drills
- Submersible Pumps
Essentially any tools requiring 5 gpm – 10 gpm at 1750-2300 psi can be run with a Rhino® Hydraulic Power Pack.
(Less than 500 psi.)

Downloads

HPP 18V FLEX™
HYDRAULIC POWER PACK

(Less than 500 psi.)

Downloads

HPD 60™
HYDRAULIC POST DRIVER


- T-Post
- Ground Rod
- Tent Stakes
- Schedule 40 Pipe up to 4″ in diameter
- Channel Posts up to 3-4 lbs/ft
- Rectangular Posts
Downloads

HBR 60™
HYDRAULIC BREAKER


Material up to 6″ thick :
- Reinforced Concrete
- Light Traffic Asphalt
- High Traffic Asphalt
- Frozen Ground
- Rocks
- Pounding Poles
- Pounding Rods
- Tamping
Material up to 9″ thick :
- Reinforced Concrete
- Light Traffic Asphalt
- High Traffic Asphalt
- Frozen Ground
- Rocks
- Pounding Poles
- Pounding Rods
- Tamping
Downloads

HBR 90™
HYDRAULIC BREAKER


Downloads

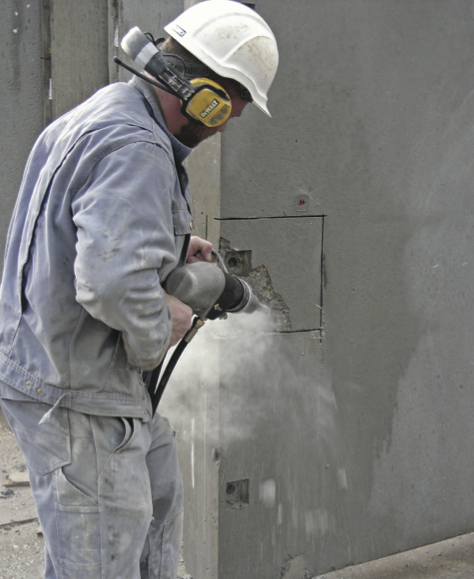

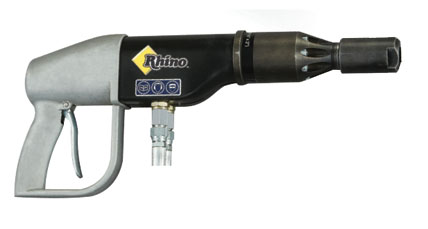

HBR 22™
HYDRAULIC CHIPPING HAMMER

Material up to 2″ thick :
- Horizontal Breaking
- Brickwork
- Light Concrete
- Reinforced Concrete
- Light Traffic Asphalt
- Frozen Ground
- Pounding Rods
- Soil Sampling

Downloads

HCD™
HAND CORE DRILLS

Features
- Reinforced Concrete
- Installing Drainage
- Electrical Wire
- Ventilation Ducts
- Sewage and water
- Holes up to 14″ in diameter
Downloads

HCS™
HYDRAULIC CUT-OFF SAWS
HCS 14, HCS 16, HCS 18 AND HCS 20

CUTS:
- Concrete with or without rebar
- All Asphalt
- Steel
- Brick Wall
- Door or Window Openings
- Pipes
Downloads

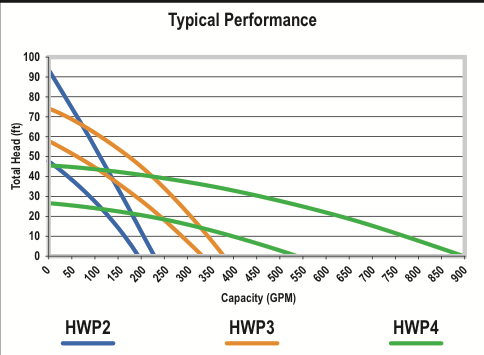

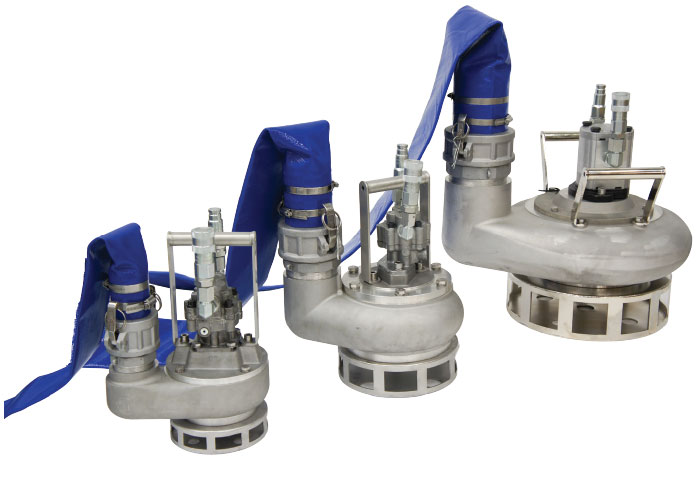

HWP™
HYDRAULIC SUBMERSIBLE PUMPS

REMOVES WATER FROM:
- Trenches
- Ponds
- Tanks
- Pools
- Vaults
- Building Sites
- Agricultural Sites
- Mining Sites

Downloads

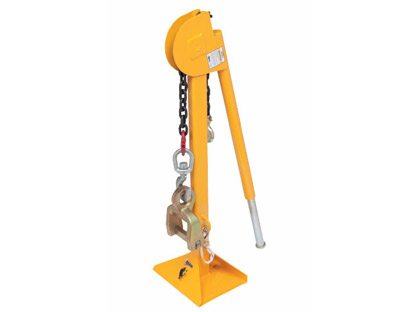

MP-3™
MANUAL POST PULLER





071041 : Panel Post Grabber sold separately

Downloads
Specifications
Specifications | |
---|---|
Model No. | 071012* |
Height Dimension in (m) | 41 (1.04m) |
Base Dimension in (mm) | 9-1/2x12 (241 x 304) |
Handle Length in (m) | 60 (1.52) |
Weight lbs (kg) | 41 (18.7) |
Ship Weight lbs (kg) | 70 (31.75) |
Accessories | Pt. No. |
Post Grabber | 071040 |
Chain Assembly | 220422 |
Panel Post Grabber | 071041 |
Tent Stake Grabber | 071042 |
Model MP-3 Manual Post Puller Only | 071013 |

PL-3™
HYDRAULIC POST PULLER






071041 : Panel Post Grabber sold separately

Downloads
Specifications
Specifications | |
Model No. | 071000 |
Dimension in (mm) HxWxL | 38" x 13-1/4" x 13-1/4" (965 x 337 x 337) |
Hook Opening in (m) | 1" (25.4) |
Cable | 3/8" (9.5) |
Pulling Stroke in (mm) | 17" (432) |
Weight lbs (kg) | 53 (24) |
Ship Weight lbs (kg) | 60 (24) |
Accessories | Pt. No. |
Post Grabber | 071040 |
Panel Post Grabber | 071041 |
Tent Stake Grabber | 071042 |

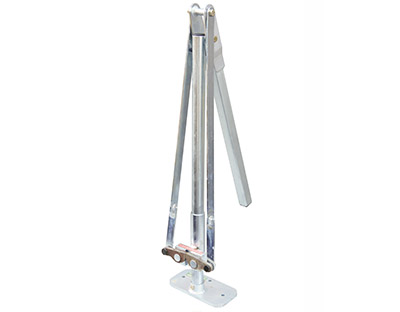

JACKJAW®
POST EXTRACTORS

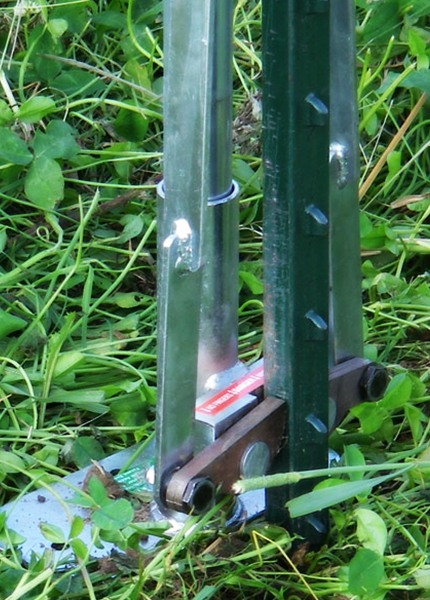

Model: JackJaw® T-Post Extractor
Model Number: 302003
Height: 29” (73.66 cm)
Weight: 21 lbs ( 9.52 kg)
The JackJaw® T-Post Extractor’s horizontal base optimizes it to pull “T” fence posts, and string line stakes. In concrete applications JackJaw® T-Post Extractors pull form pins without breaking the fresh concrete.

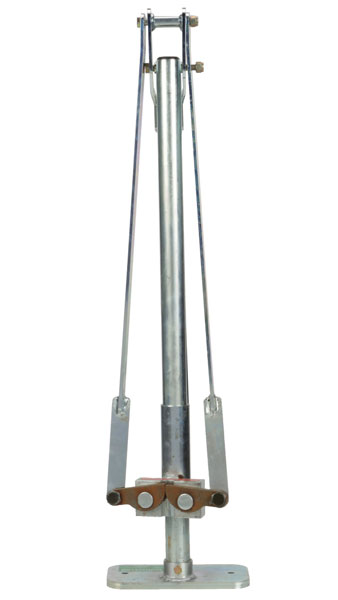

Model: JackJaw® Tent Stake Extractor
Model Number: 302001
Height: 29” (73.66 cm)
Weight: 26 lbs. (11.79 kg)
The JackJaw® Tent Stake Extractor is the fast, easy and safe way to pull tent stakes or rebar with a diameter of ¾” to 1 ¼”. This tent stake puller prevents bending the stakes and damage to asphalt by pulling stakes straight out of any surface.
